How to Select, Install, and Maintain Pipe Heating Blankets

Updated August 2026

Pipe Heating Blankets are removable flexible heating assemblies used around pipes and components for freeze protection, temperature maintenance, or controlled heat-up. Those duties are not interchangeable. Reliable selection begins with the pipe, fluid, ambient exposure, insulation, access plan, sensor objective, and commissioning evidence, not with a catalogue temperature printed beside a blanket family.

That distinction matters on an industrial line. Short water-line wraps may be wrong for a valve body, a hazardous location, a dry plastic pipe, or a process stream with a narrow allowable temperature band. Engineering and maintenance teams need a way to define the job before they request a product configuration.

Start With the Thermal Duty, Not the Blanket

Outside diameter alone can’t size a pipe heating blanket. Freeze protection, steady temperature maintenance, and scheduled heat-up impose different loads for water, chemicals and other fluids, while wind, insulation, pipe conductivity, supports, and acceptable warm-up time change the result. Designers must determine how much heat the installed system loses under its stated boundary conditions.

ORNL’s MEASUR pipe model calculates heat loss per unit length from cylindrical pipe and insulation resistance, convection, radiation, ambient conditions, and wind. Its solver updates surface temperature until the heat-loss change is below 0.0001 W/m or 30 iterations are reached. That detail shows why a universal W/ft value omits variables that drive the answer.

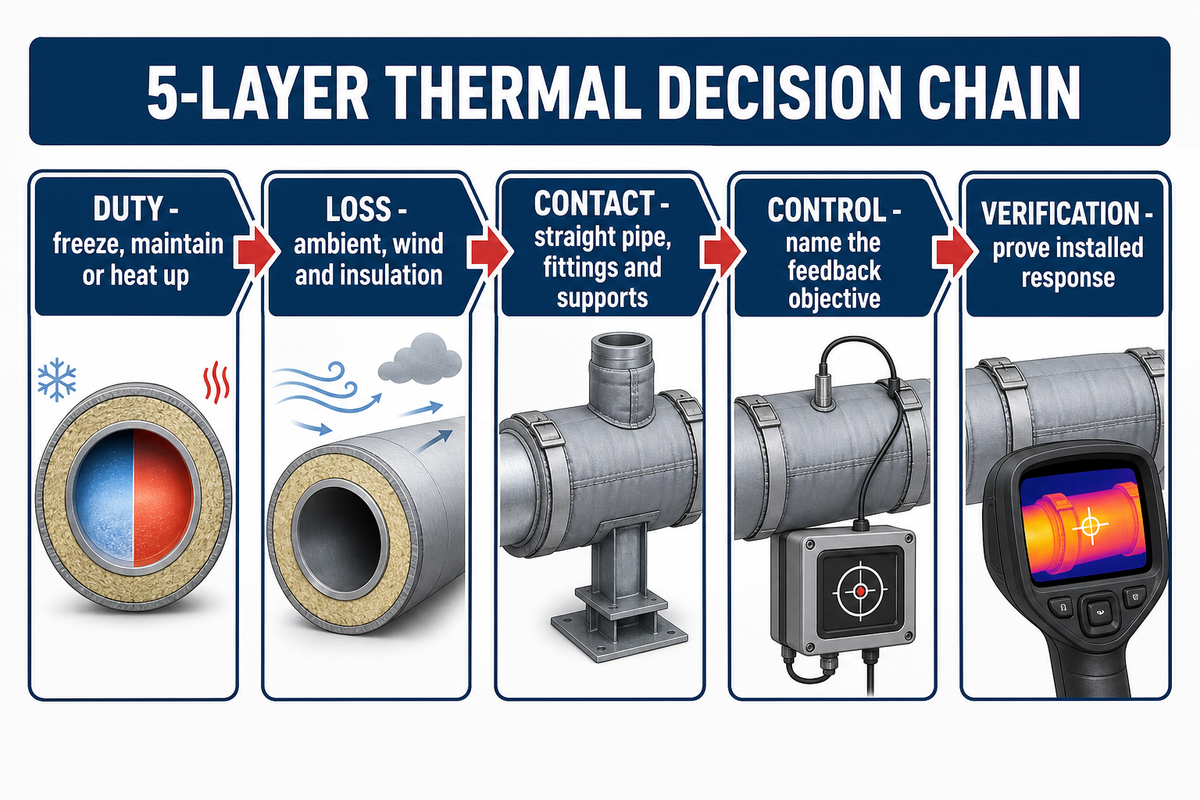

Five linked layers form the 5-Layer Thermal Decision Chain. Its logic synthesizes the ORNL model, insulation guidance, standard scope, first-party application categories, and commissioning evidence; no standard publishes this exact table.

For an illustrative brief, a team might record a 60.3 mm outside diameter, a 10 m heated length, a 20 °C target, a −20 °C design ambient, a 5 m/s wind case, and 50 mm of insulation. Those numbers are inputs, not an answer. Next, run a condition-bound calculation and review pipe, fluid, insulation, power, sensor, and protection limits.

“The U-value … characterizes the thermal performance of a system as opposed to a homogeneous material.”

Decision: keep the duty unresolved until all five layers have an owner. An upstream industrial pipe process heating page can frame the wider method decision, but each application still needs project-specific calculations.

Choose a Blanket or Heat Trace

Removable blankets and permanent heat trace solve different installation problems. Blankets can suit irregular or serviceable components when a shaped assembly and repeatable removal plan are required; cable trace can suit long, repetitive pipe runs. Insulation or non-electric freeze-protection methods may also win when power availability, process criticality, or access changes the risk.

A ThermOmegaTech-authored article published by Plant Engineering routes methods by climate severity, vulnerable-area criticality, power availability, and exposure. Its analysis says insulation isn’t always enough and electric systems remain vulnerable to power failure or insufficient design. Because the author works in marketing for a freeze-protection supplier, this evidence supports a conditional route only, not a claim that one product family is best.

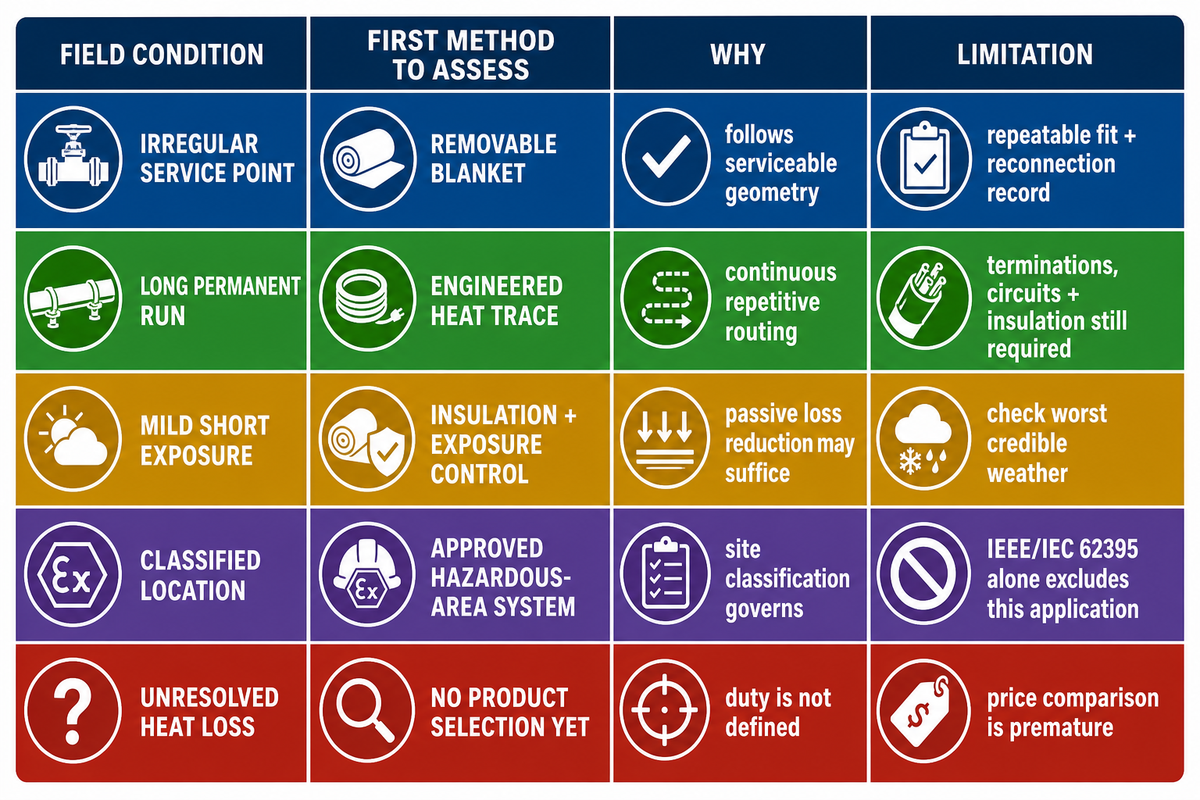

This table is a buyer synthesis, not a standard-prescribed matrix. It doesn’t replace the interactive tool already published on the site; teams needing a structured input review can compare pipe heating methods without copying that tool into this article.

Search terms that describe different heating products

Search results mix industrial heating equipment, consumer freeze wraps, PVC tools, cable trace, and cure products under similar names. Treat each phrase as a discovery clue, not proof that two products share electrical approval, temperature range, construction, or permitted use.

Queries such as “industrial heating blanket for pipe,” “heat blanket for PVC pipe,” “outdoor heat blanket for pipes,” and “heat trace blanket” can describe different product families. Related searches such as “Best pipe heating blankets,” “Electric pipe heating blankets,” and “Heat blanket for PVC” still require the same scope check before an industrial buyer treats the results as comparable.

For cold conditions, the real goal may be to maintain flow, prevent frozen pipes, protect pipes from freezing, or limit downtime. Those outcomes require measured heat-up, power consumption, overheat response, insulation, and circuit availability. Category language can’t stand in for installed evidence.

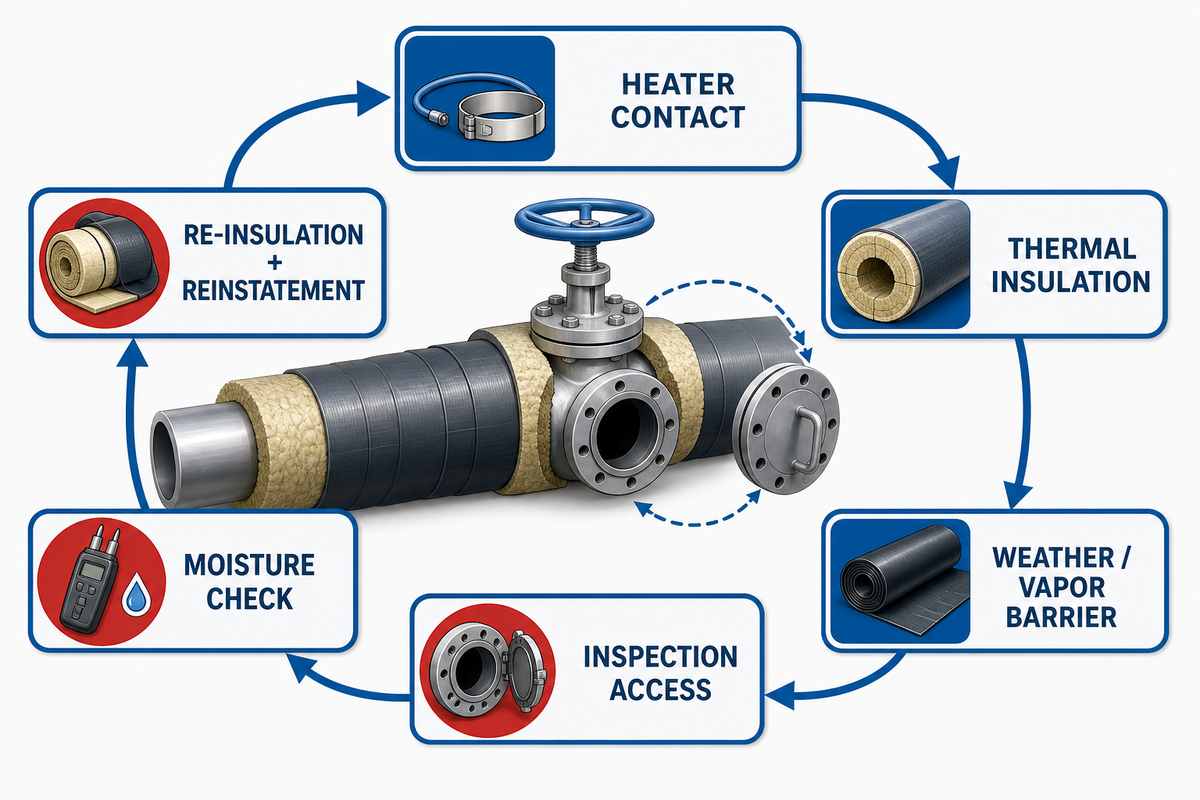

Treat Insulation, Moisture, and Access as One System

Whichever heating method is chosen, heater output, thermal insulation, weather or vapor barrier, drainage path, inspection access, and reinstatement quality form one system. Removable access can be a deliberate advantage at valves, fittings, and flanges, but every removal opens a second task: restore contact, insulation, joints, identification, and the water-shedding outer layer correctly.

NIA’s installation guide describes removable insulation covers or inspection ports as access provisions for periodic inspection, especially at valves, fittings, and flanges where leakage is more likely. It also calls for re-insulation in the same manner as the original installation unless the damage shows that the prior system was improper or its materials are outdated. Access is therefore a designed maintenance feature, not proof of moisture protection.

AMPP’s 2025 CUI guidance identifies water intrusion as the leading cause of corrosion under insulation and recommends visual checks, access provisions, resealing, jacket repair, coating review, and risk-based inspection. A peer-reviewed CUI review describes moisture beneath insulation and the inspection sequence of removal, testing, and reinstallation.

Can I add insulation to help a pipe heating blanket?

Insulation can reduce heat loss, but adding it changes the installed thermal system and may alter heater temperature, moisture behavior, and access. Supplier instructions and the approved heat-loss review must permit the construction. Extra insulation isn’t a harmless afterthought, and one vendor’s prohibition or permission can’t be transferred to another product.

Fit Straight Pipe, Valves, Flanges, and Supports

Straight pipe, bends, valves, flanges, supports, penetrations, and small-bore sensing lines do not present the same contact or heat-loss path. Support brackets can act as local heat sinks; flanges can interrupt contact; penetrations can restrict closure. Geometry must be recorded at the component level before coverage is selected.

Published application US20130104988A1 describes a semiconductor fluid-line heater jacket using spacers, bends, separate thermocouple zones, and removable closures. The application names Andrew M. Yednak III and Frederick L. Pettinger Jr. as inventors, was filed by ASM America Inc, and currently lists ASM IP Holding BV as the assignee; it is not FlexBlanket technology. Its dimensions or temperature values do not transfer here. Its useful lesson is narrower: contact path, bends, zoning, and sensing are intentional design variables.

At a pipe support, the blanket drawing should show where heat contact stops, where insulation is compressed or interrupted, and how the support conducts heat away. At a flange or valve, record fasteners, stems, packing access, actuator clearance, removal direction, and lead or sensor routing. Photos help orient the drawing, but dimensions and service clearances remain the release inputs.

Use the site’s application-fit review when the component cannot be described by diameter and length alone.

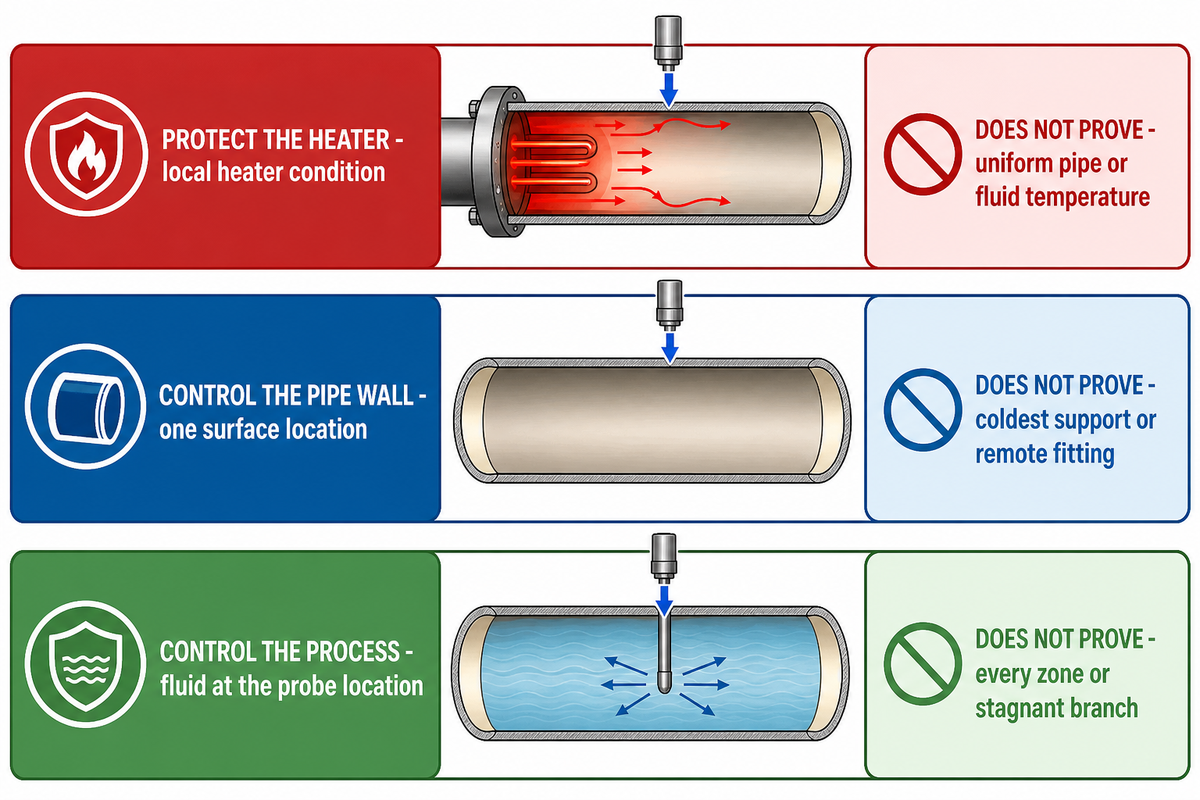

Place the Sensor for the Temperature You Need to Control

Sensor placement should follow the feedback objective. Sensors near the heating element can represent heater conditions; pipe-wall sensors represent one surface location; process probes represent fluid only at their own points and response times. Control documents must name which temperature governs normal control, alarm, and shutdown decisions.

NRC LER 99-001-00 gives this issue operational weight. Its corrective actions called for clearer temperature-element placement, wire configuration, insulation requirements, and use of a pyrometer. Those corrective actions show why control indication should be checked against independent local-temperature evidence.

Where should the temperature sensor go?

Sensor placement should represent the documented control objective and remain repeatable after service. Record the attachment method, insulation around it, distance from the element or thermal bridge, cable route, alarm logic, and reference measurement. Commissioning should compare the sensor with independent readings at vulnerable locations rather than assuming one point covers the line.

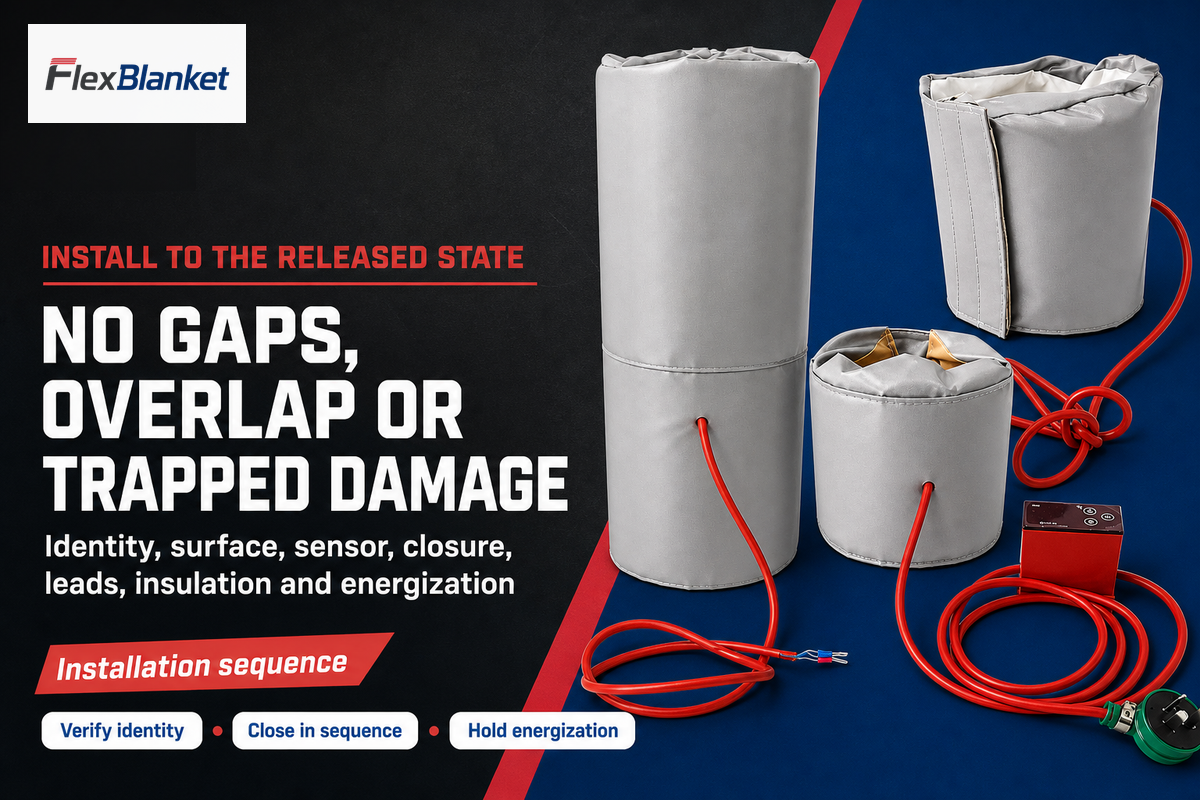

Install Without Gaps, Overlap, or Trapped Damage

Installation should preserve the approved contact pattern, closure sequence, lead exit, sensor location, insulation system, electrical protection, and removal path. Cutting, overlap, burial, stacking, sharp folding, or operation on an empty pipe must never be inferred from another heater family. Permission and limits belong to the supplied model’s instructions and project documents.

Active IEEE/IEC 62395-2:2024 guidance covers system design, installation, maintenance, and repair. Its scope also says surface heaters are assembled or terminated according to manufacturer instructions and that critical connection or termination work is for trained personnel under qualified supervision.

1. Verify identity. Match the blanket, controller, sensor, circuit, drawing, and location tag.
2. Inspect the surface. Remove debris, sharp edges, damage, and moisture that would change contact.
3. Set the sensor. Attach it in the documented orientation before closing the blanket.
4. Close in sequence. Keep the intended contact path without unapproved overlap or bunching.
5. Route leads. Protect exits from strain, abrasion, hot surfaces, standing water, and service movement.
6. Restore insulation. Rebuild joints and the weather or vapor barrier according to the approved construction.
7. Hold energization. Release power only after the electrical and mechanical checks are signed.

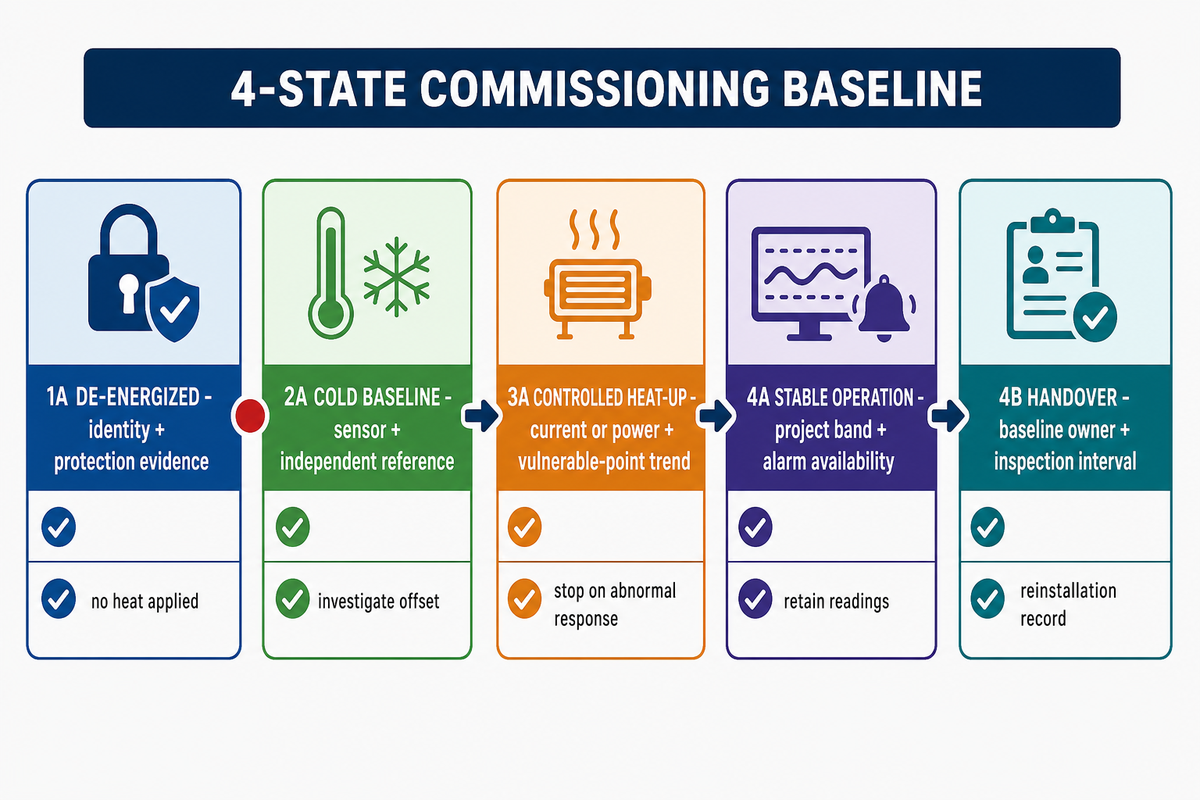

Use the 4-State Commissioning Baseline

Commissioning should prove both thermal response and continuing circuit availability. Four states, de-energized, cold, controlled heat-up, and stable operation, create a record that links installation, sensor identity, protection, alarms, current or power, and local pipe readings. Controller displays alone can’t prove the coldest segment or the alarm path remains protected.

Four defined states form the 4-State Commissioning Baseline, a practical synthesis of the IEEE/IEC 62395-2 application-guide scope and the NRC heat-tracing event. Acceptance values come from the approved design; this table defines evidence fields, not universal pass numbers.

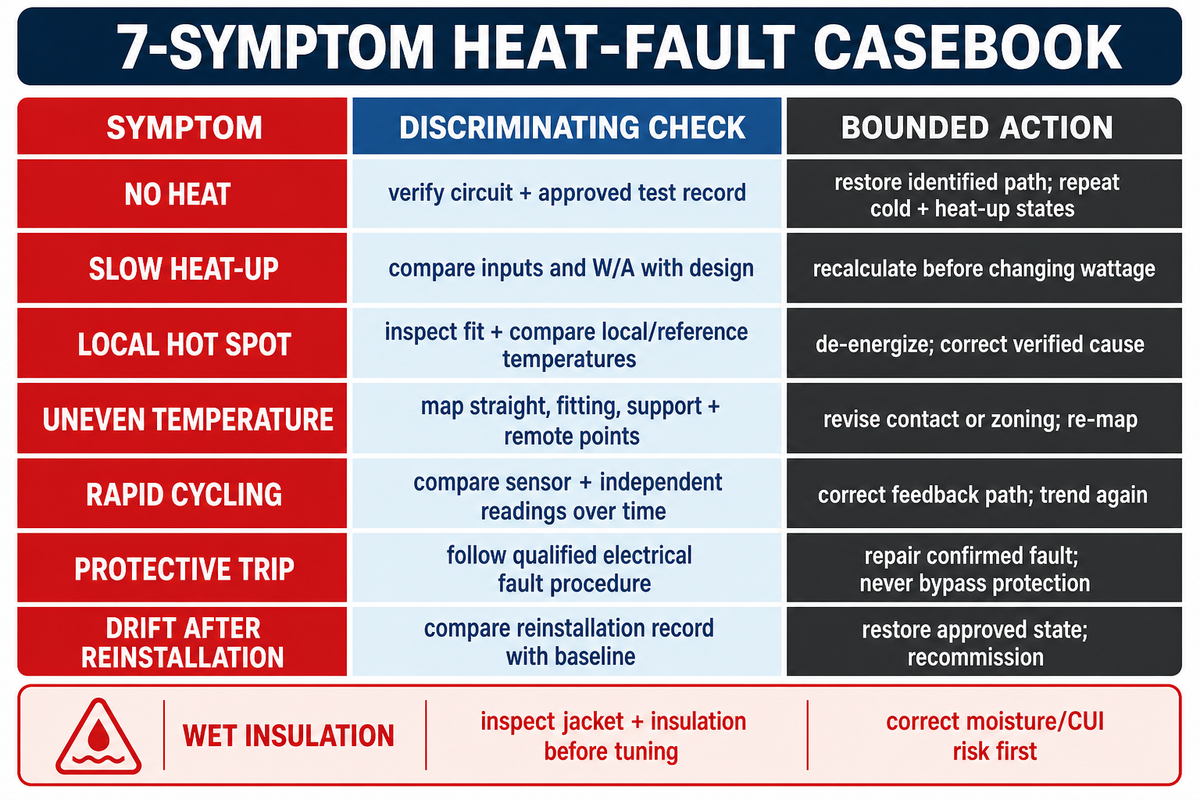

Read the 7-Symptom Heat-Fault Casebook

Troubleshooting should begin with a symptom, then test one discriminating mechanism before making one bounded change. Cold pipe conditions can come from lost power, poor contact, wet insulation, a misplaced sensor, a local support heat sink, inadequate duty, or process change. Replacing the blanket first can hide the original failure and destroy evidence.

Electrical practitioners often start with terminations, ground-fault paths, thermostat behavior, and pipe state when a traced line fails. Forum discussion supplies field vocabulary, not universal repair instructions. The NRC corrective-action record identifies sensor placement, wiring, insulation, and pyrometer measurement as distinct corrective-action topics that can inform troubleshooting within approved site procedures. Electrical testing and repair remain within the site’s approved procedures and qualified-person boundaries.

Why is the blanket not getting hot enough?

Low temperature doesn’t identify a single cause. Confirm power and protection availability, present current or power, controller state, sensor position, blanket contact, insulation condition, ambient exposure, pipe contents, and local thermal bridges. Compare findings with the approved duty before changing a setpoint or heater. One confirmed mechanism should lead to one bounded correction and a fresh commissioning trend.

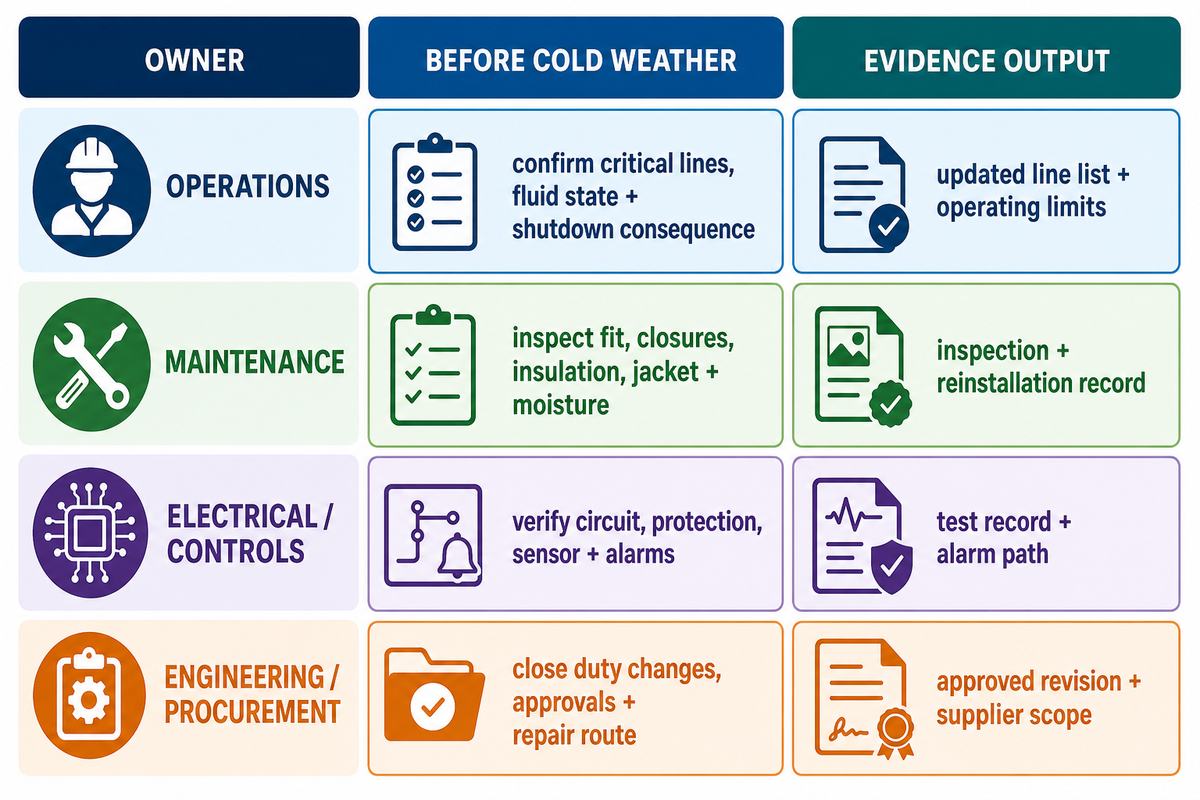

Plan Seasonal Inspection Before Cold Weather

Seasonal readiness for outdoor pipes should be scheduled before the exposure arrives, not inferred from a market forecast. DataForSEO returned a 12-month series with strong seasonality for the pipe-heating query cluster but no prior-year matching quarter for a valid year-over-year label. Defensible planning ties inspection timing to local climate, criticality, and failure consequence.

The supplier-authored Plant Engineering article recommends identifying freeze-vulnerable areas and assessing both climate severity and water-supply criticality. In its sprinkler-system context, Missouri Department of Health guidance on frozen piping directs facilities to check displaced attic insulation and install temperature sensors for cold spots; its listed-equipment restrictions remain specific to that application. Inspection scope should cover displaced insulation, damaged weather barriers, closures, leads, sensors, circuit and alarm availability, backup-power assumptions, commissioning records, and access to valves or supports. Facilities with several exposure zones may need more than one protection method.

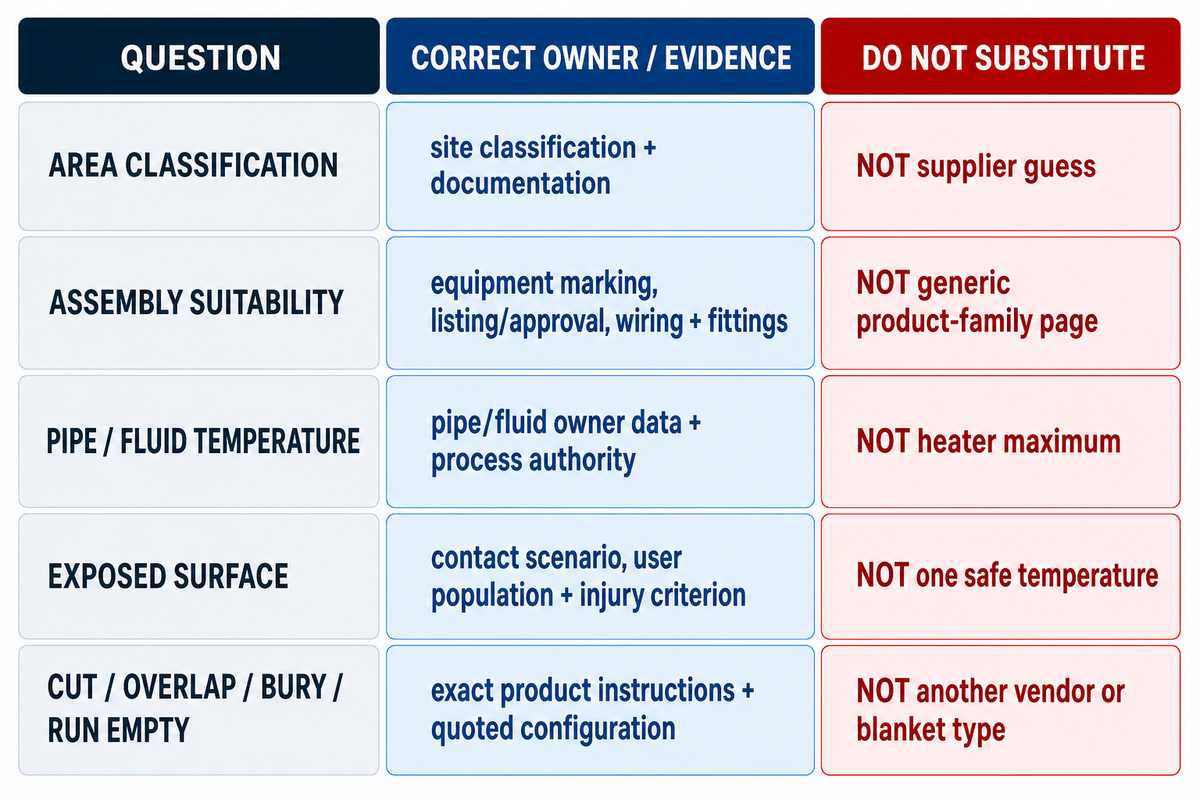

Keep Safety and Approval Boundaries Explicit

Thermal selection can’t replace electrical, process, and site approvals. Site teams own hazardous-area classification and documentation; equipment packages must match that location; pipe owners supply material and fluid limits; and surface-contact assessments depend on contact time and injury criteria. Product temperature, enclosure rating, and certification are separate evidence objects.

OSHA 1910.307 requires hazardous locations to be classified and documented, with equipment, wiring methods, and installations suitable for the classified location. Approval extends beyond the blanket surface: protection technique, fittings, wiring, grounding or bonding, markings, ambient range, and operating temperature can all carry system-level consequences.

ASTM C1055-20 says determining one universally safe surface temperature is beyond its scope. ASTM contrasts a proposed 60 s consumer contact with a 5 s industrial contact and notes that injury above 70 °C on metallic surfaces can occur almost instantly. Those examples show why a maximum heater rating cannot be relabeled as “touch safe.”

IEEE/IEC 62395-1 and 62395-2 explicitly exclude potentially explosive atmospheres. Separately applicable hazardous-area standards and an approved installation route are required. Accordingly, no FlexBlanket certification for a classified location is claimed, and no ingress rating is treated as proof of washdown, immersion, or third-party testing.

Where the Guide Hands Off to a Product Specification

Guidance ends where product evidence begins. Once duty, geometry, environment, insulation, sensor objective, electrical boundary, and acceptance method are fixed, the supplier can return a construction, power basis, control package, limits, documentation scope, and quotation. Commercial fields remain on the existing solution page rather than being duplicated here.

Review FlexBlanket’s pipe heating blanket configuration options after the engineering brief is ready. Teams that need a structured handoff can also prepare the final application brief.
